An endless surface which baggage can be displayed prior to reclaim, robustly constructed, flexible in design delivering maximum safety and user friendly features.

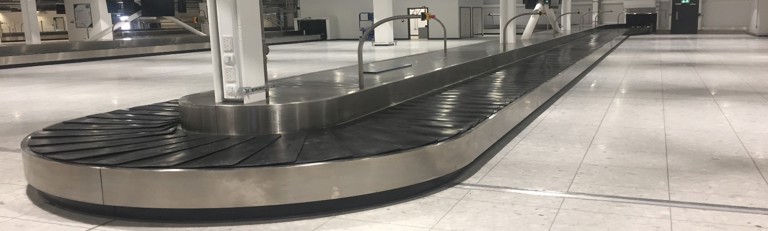

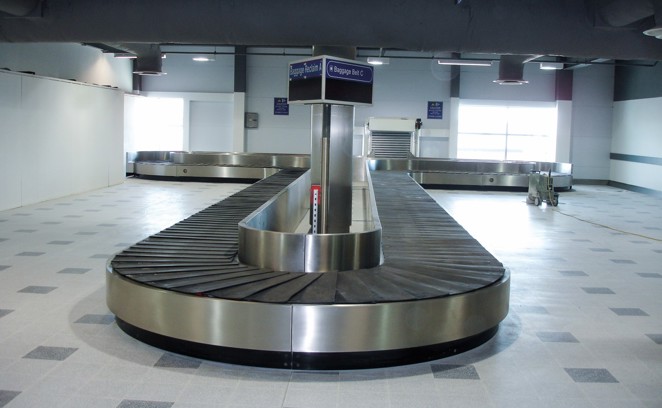

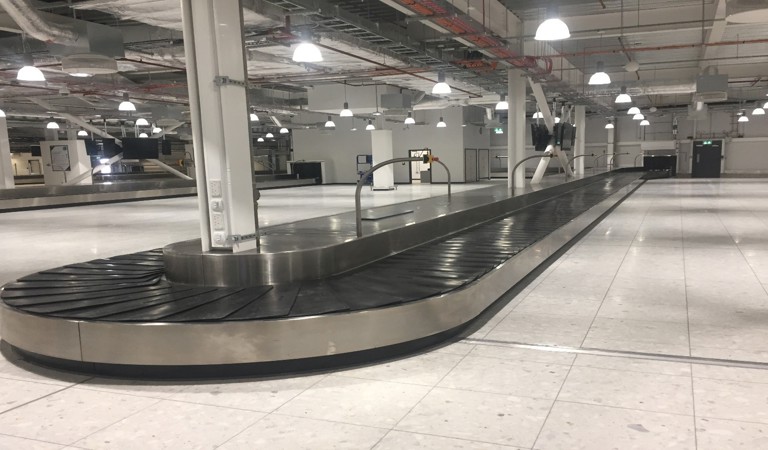

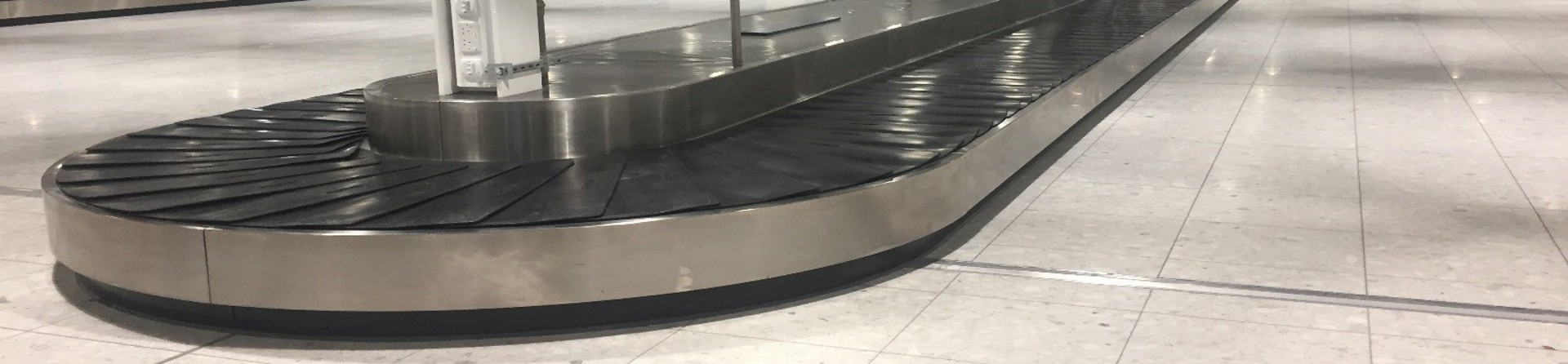

The Carousel provides an endless surface which baggage can be displayed prior to reclaim. A combination of straight and radius sections gives the Robson carousel the flexibility to form different types of shapes such as T, U, O, L most shapes can be accommodated depending on available space.

Rigidly constructed on to a mild steel sub-frame, choices of galvanised or powder coated mild steel or x240 grit finish stainless steel casings are available.

With a nominal speed of 0.45 metres per second and having all fixings internal to the casing resulting with no protruding items plus integral Kick Plates the Robson Airport Baggage Handling Carousel ensures the safety of all uses, Baggage Handlers or Passengers.

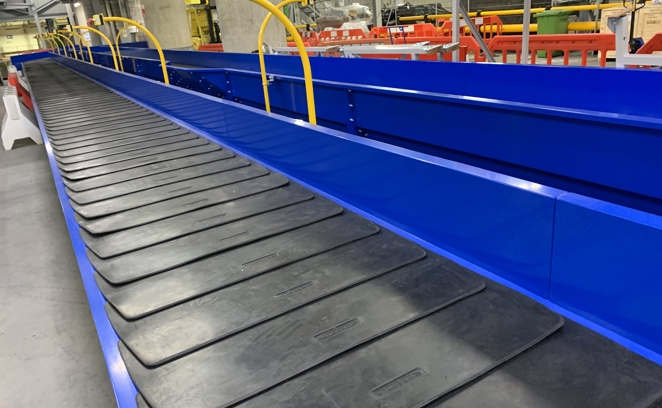

The conveying surface comprises of overlapping flexible rubber slats, supported on the underside by steel carriers, this gives a user friendly surface that eliminates finger traps, whist having a strong support able to withstand heavy luggage.

With a choice of finishing materials, the Robson Airport Baggage Handling Carousel is ideal for Land Side or Air Side service. Available with Caterpillar Chain or Friction Drive units to suit customer requirements.

Length Unlimited to suit building contraints
Widths Airside Baggage Hall - 1000mm / Landside Baggage Reclaim - 890mm
Bend Diameter Min 1150mm - Max unlimited
Material Mild Steel or Stainless Steel
Finish Mild Steel - Galvanised or Powder Coated
Stainless Steel - 240 grit finish Stainless Steel
Speed 0.45 metres per second
Capacity Maximum chain pull 540 kg
Drive Geared Motor Unit
Friction Drive Composite, Bi directional blocks, driven by a friction belt
Caterpillar Chain Steel Chain Links, driven by a sprocket
Options Flame retardant rubber slats to ISO 340
Emergency Control Passenger Reclaim: Mounted or recessed EStop / Makeup Area: EStop or Pullwires



Features and Benefits

Lower Maintenance Cost
Modular and durable design.
Significant savings in relation to spare part inventory requirements and costly downtime.
Increased Safety
The conveying surface comprises of overlapping flexible rubber slats, supported on the underside by steel carriers.
A user friendly surface that eliminates finger traps, whilst having a strong support that withstands heavy luggage.
Guaranteed Quality
Decades of airport experience. Manufactured by highly skilled engineers.
Durability and longevity of equipment, equating to lower maintenance costs.
Innovatively Designed Layout Solutions
A combination of straight and radius sections provides the flexibility to accommodate the available space.
Greater throughput and efficiency. More innovative layout designs in complex and compacted spaces.
Reduced Lead-Time
Flexibility and responsiveness to meet tight project deadlines.
Minimum disruption to on going airport operations.
Aftermarket Support
Call out support, 24 hour help line, maintenance support, refurbishment service and spare part inventory.
Increased product life and avoidance of costly downtime, equating to long-term cost savings.
