Check-in Conveyor

Features & Benefits
Downloads

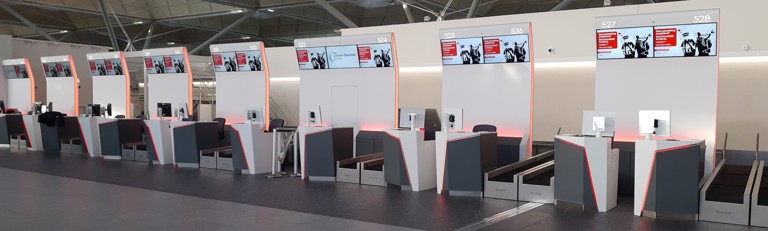

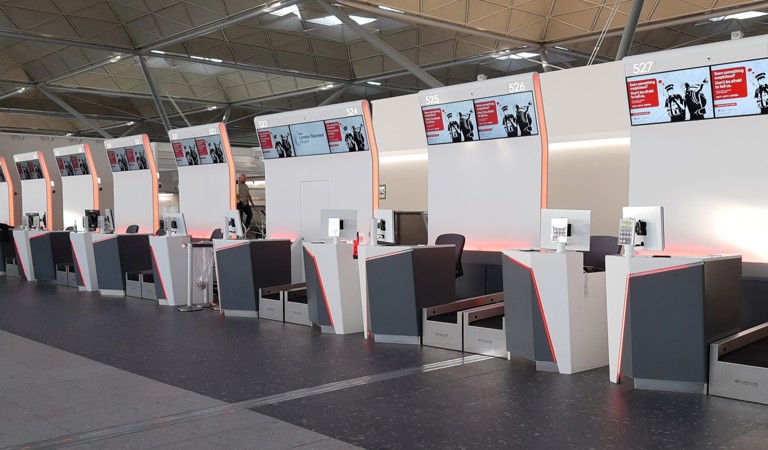

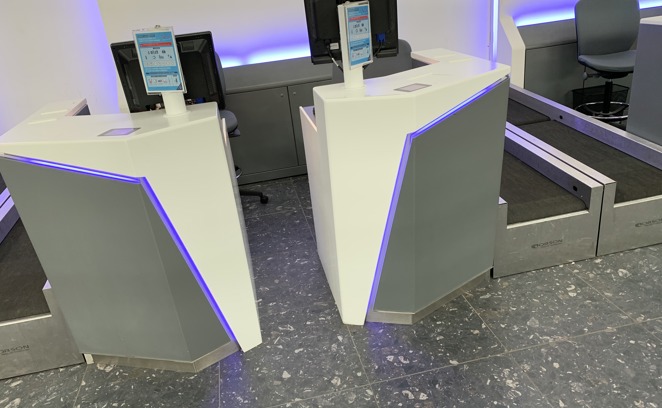

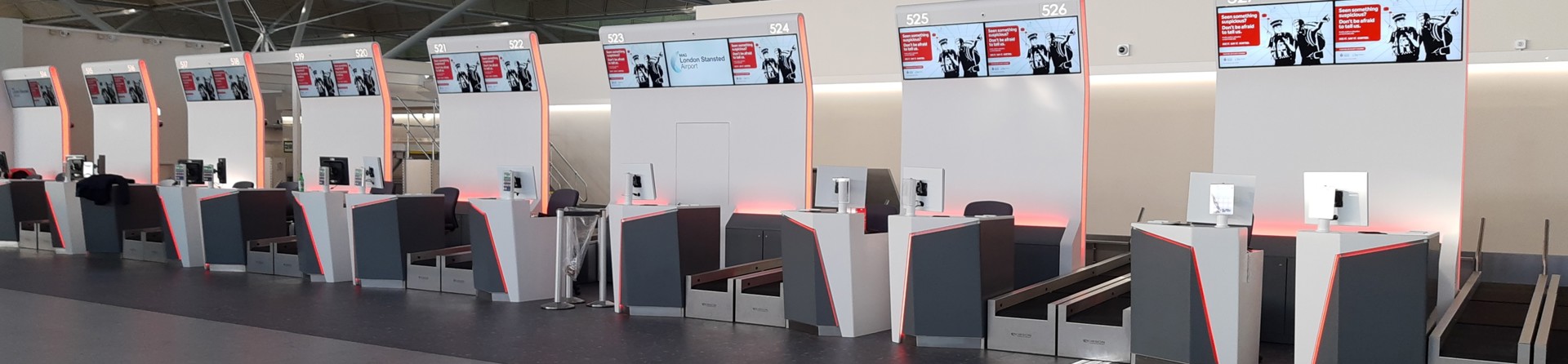

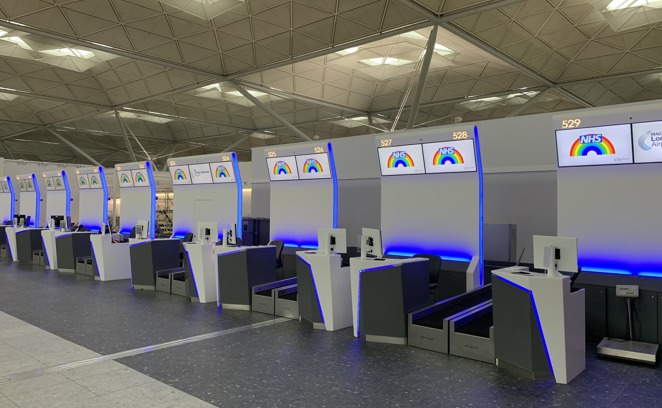

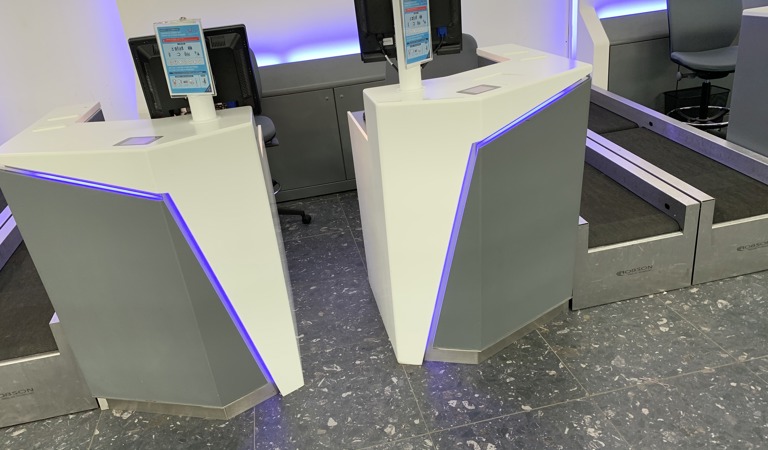

Aesthetically pleasing checkin conveyors weigh, label and despatch baggage, and can be configured in to one, two or three stage check-in arrangements.

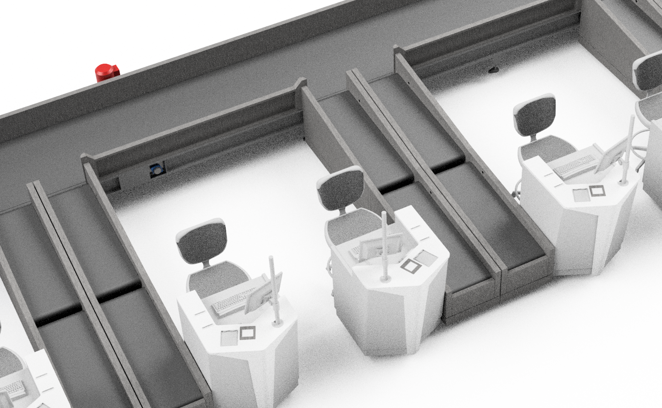

Robson weigh, label and despatch conveyors can be configured in to one, two or three stage check-in arrangements.

Bags are weighed/labelled and despatched on a single long weigh conveyor. Usually the weighing and labelling operations are carried out on a single conveyor, and bags despatched onto the collector from the second.

Separate conveyors are used for the weighing, labelling and despatch of the bags for maximum flexibility.

For ease of maintenance the weigh conveyor is mounted on castors, which run in a track fixed to the top of the weigh scale. The castors enable swift replacement of the conveyor with standby units.

The conveyor is easily transported to the maintenance department.
The conveyor is retained in its operating position by location devices and shoot bolts. Access to the shoot bolts/power and control sockets is via a hinged plate mounted on the front of the weigh conveyor.

The conveyor and casing is constructed from a 3 pressing slider bed, manufactured using satin finish stainless steel plate x240 grit finish.

The belt is a diamond pattern conveyor belts, vulcanised endless, will run around terminal pulleys comprising of a tail pulley with integral roller bearings running on a dead shaft and motorised drum running in mounting blocks.

The conveyor tension pulley comprises a steel drum fitted with integral bearings, running on a dead shaft.

CHECK IN CONVEYOR

Dimensions

Length x Width – to suit conveyor.
Height 109 mm.

Material

Mild Steel: Chasis
Stainless Steel: Outer case

Finish

Mild Steel: Powder coated
Stainless Steel: 240 grit finish

Drive

Powered Roller

Connection

Harting Connectors

Options

Platform or Conveyor



CHECK IN - WEIGHSCALE
Robson supply weighing equipment from the world’s leading manufacturers. Giving the customer a range of choice.

Load Cells

One, Two or Four

Displays

Two displays per Scale

Capacity

0 up to 150kg

Increments

100g

Emergency Control

Desk Mounted EStop



Features and Benefits

Lower Maintenance Cost
The weigh conveyor is mounted on castors, which run in a track fixed to the top of the weigh scale to provide an maintenance friendly design.
Quick replacement, keeping costly down-time to a minimum.
Increased Safety
Guarded to prevent access to moving parts.
Increased user safety.
Guaranteed Quality
Decades of airport experience. Manufactured by highly skilled engineers.
Durability and longevity of equipment, equating to lower maintenance costs.
Innovatively Designed Layout Solutions
Ability to easily upgrade from Check-In to Self-Service Kiosks, along with low and high walls providing seamless integration with existing systems.
pleasing products. Upgrade your airport with limited disruption and costs, providing increased airport efficiency.
Reduced Lead-Time
Flexibility and responsiveness to meet tight project deadlines.
Minimum disruption to ongoing airport operations.
Aftermarket Support
Call out support, 24 hour help line, maintenance support, refurbishment service and spare part inventory.
Increased product life and avoidance of costly downtime, equating to long-term cost savings.
