Solving your Cargo handling challenges...

As air traffic continues to grow at a rapid pace of 8% per year, and even up to 20% in some regions, the demand for air cargo transportation is also on the rise. With this surge comes the challenge of effectively managing and transporting cargo to ensure timely and safe delivery.

Robson Handling Technology are pleased to be Collaborators, delivery Partners, and Systems Integrators of SACO Cargo Handling Equipment, within the UK and Ireland, offering over 50 years of experience in providing reliable and efficient ULD handling solutions. From manual systems to fully automated solutions, Robson and SACO can design and supply turnkey Cargo Handling Equipment and Systems tailored to the unique needs of each customer.

With modular design units, existing systems can be easily modified, extended, and upgraded in phases as cargo volumes increase. Robson provides full after-sales support, including custom maintenance solutions and 24/7 service to ensure a consistently high standard of performance throughout the lifespan of the system.

SACO's Cargo Equipment and systems have been successfully supplied and commissioned in various countries including Europe, India, Indonesia, USA, UAE, Canada, Curaçao, Rwanda, and Ethiopia. Trust Robson and SACO to provide the solutions necessary for managing and transporting air cargo efficiently and safely in the face of growing demand.

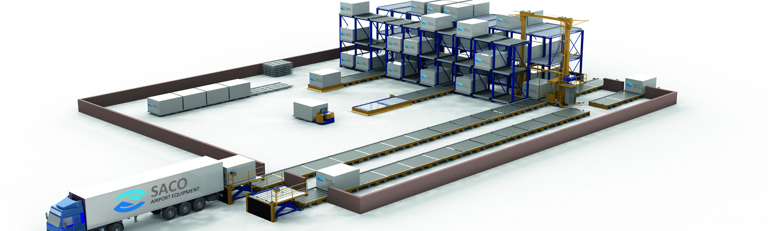

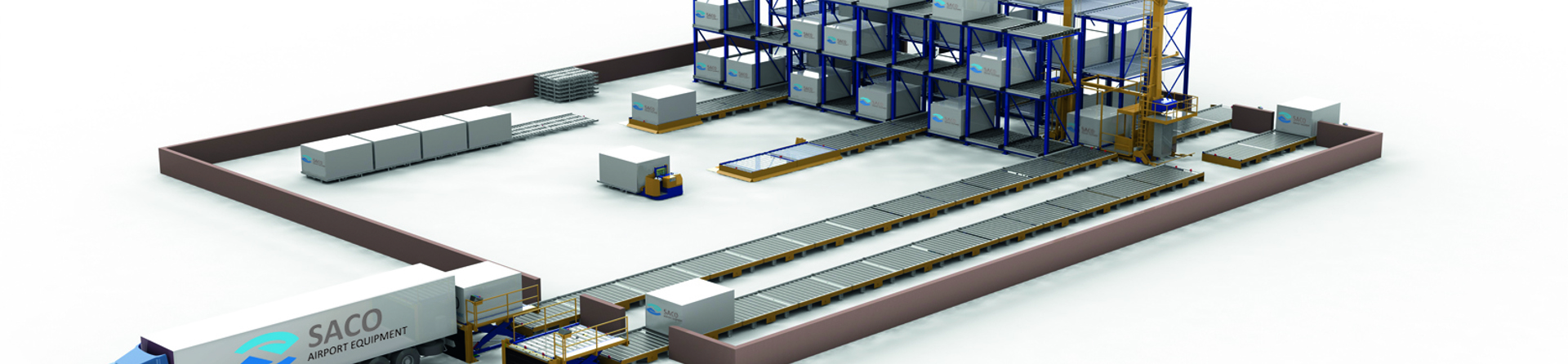

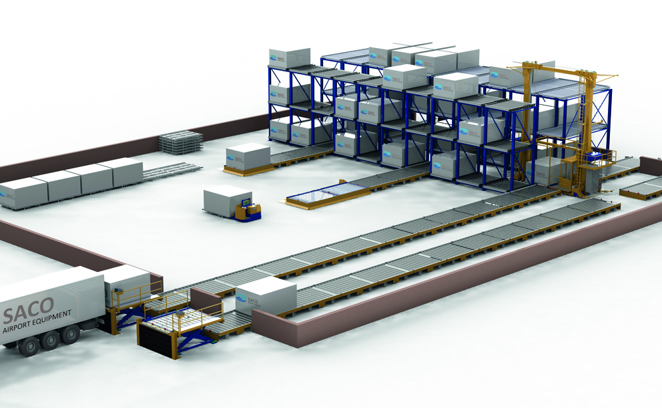

Manual to Fully Automated Solutions - Phased to suit your budgets
Manual to Fully Automated Solutions - Phased to suit your budgets

Storage / Materials Handling Software and Management

Powered Roller track / Truck Docks - with powered lift / Powered dolly docks / Build-up Breakdown powered workstations - with powered lift / Transfer Vehicles / Elevating transfer vehicles / Friction powered roller decks for storage / Ball / Castor Deck / Pallet Stops

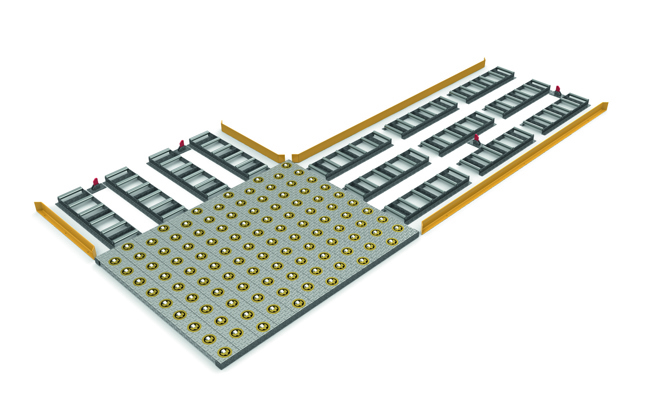

System Level 100 - Budget cargo handling system, for manual manoeuvring of ULD’s.
System Level 100 - Budget cargo handling system, for manual manoeuvring of ULD’s.

System height: 100 mm

Components: • Roller track - units with 3 or 6 rollers

• Ball deck
• Castor deck
• Pallet stop - single / double
• Side guides

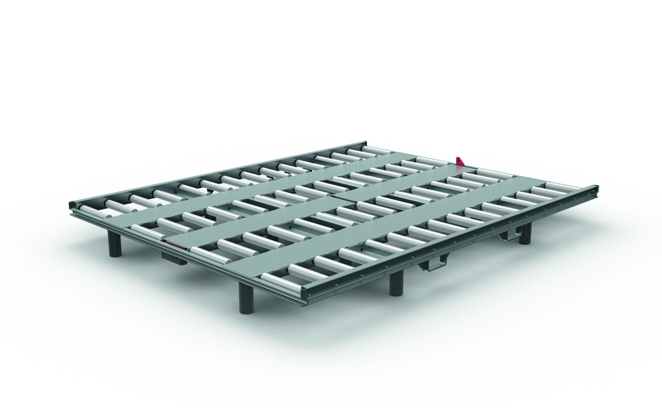

SLAVE PALLET SYSTEM Flexible cargo handling system, for handling of ULD’s.
SLAVE PALLET SYSTEM Flexible cargo handling system, for handling of ULD’s.

System height: 270 mm
Components: • Pallet Master ride-on,
• alternatively Pallet Master pedestrian
• Slave Pallet - 10ft NEP / WEP - Open / closed
• Slave Pallet Ball deck - 10ft
• Slave Pallet Castor deck - 10f

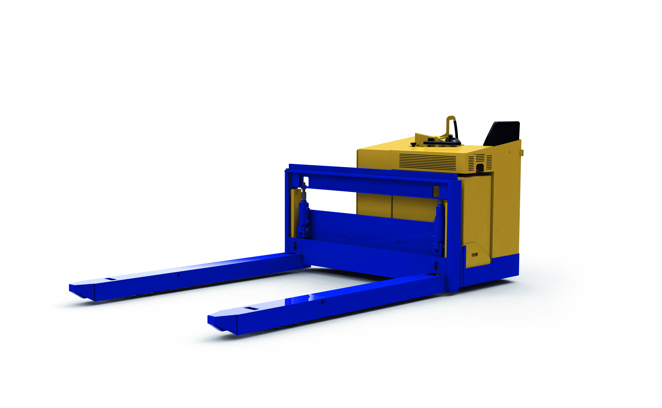

SLAVE PALLET SYSTEM - PALLET MASTER Pallet Masters for manoeuvring of ULD’s on slave pallets  Battery powered with 48 VAC system. - RIDE ON
SLAVE PALLET SYSTEM - PALLET MASTER Pallet Masters for manoeuvring of ULD’s on slave pallets Battery powered with 48 VAC system. - RIDE ON

Turning circle: Radius 3,200 mm
Lift capacity: 8,000 kg
Lift stroke: 185 - 550 mm, to enable docking of slave
pallets to conveyors at 508 mm.

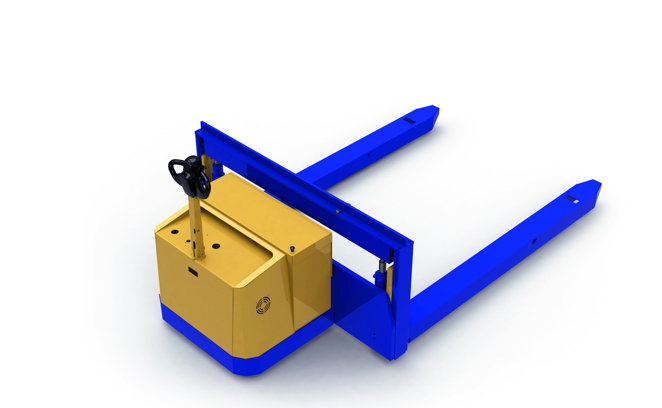

SLAVE PALLET SYSTEM - PALLET MASTER Pallet Masters for manoeuvring of ULD’s on slave pallets  Battery powered with 48 VAC system - PEDESTRIAN
SLAVE PALLET SYSTEM - PALLET MASTER Pallet Masters for manoeuvring of ULD’s on slave pallets Battery powered with 48 VAC system - PEDESTRIAN

Turning circle: Radius 3,200 mm
Lift capacity: 8,000 kg
Lift stroke: 185 - 550 mm, to enable docking of slave
pallets to conveyors at 508 mm.

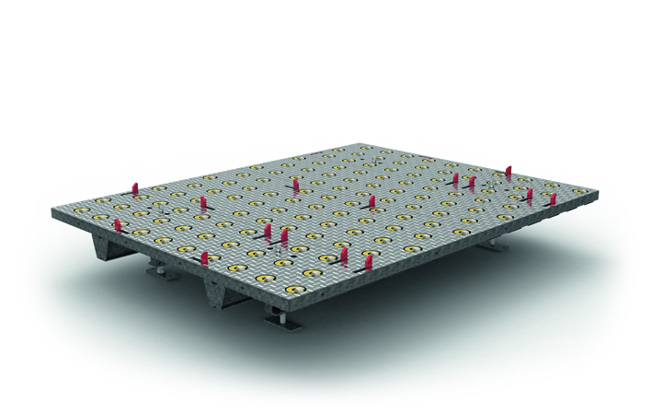

SYSTEM LEVEL 508 - MANUAL - Cargo handling system, for manual manoeuvring of ULD’s at Dolly height. - Castor Deck
SYSTEM LEVEL 508 - MANUAL - Cargo handling system, for manual manoeuvring of ULD’s at Dolly height. - Castor Deck

System height: 508 mm
Components:

• Roller deck–10ft / 15ft / 20ft NEP / 10ft WEP
• Ball deck - 10ft
• Castor deck - 10ft
Options: • Pallet stops
• Weighing System

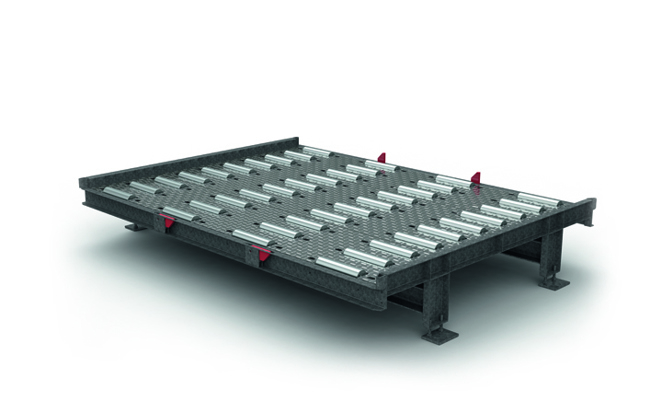

SYSTEM LEVEL 508 - MANUAL - Cargo handling system, for manual manoeuvring of ULD’s at Dolly height. - Roller Deck
SYSTEM LEVEL 508 - MANUAL - Cargo handling system, for manual manoeuvring of ULD’s at Dolly height. - Roller Deck

System height: 508 mm
Components:

• Roller deck–10ft / 15ft / 20ft NEP / 10ft WEP
• Ball deck - 10ft
• Castor deck - 10ft
Options: • Pallet stops
• Weighing System

SYSTEM LEVEL 508 - POWERED - Cargo handling system, for automated handling of ULD’s at Dolly height.
SYSTEM LEVEL 508 - POWERED - Cargo handling system, for automated handling of ULD’s at Dolly height.

System height: 508 mm
Components: • Motor powered roller deck – 10ft /
20ft NEP / 10ft WEP

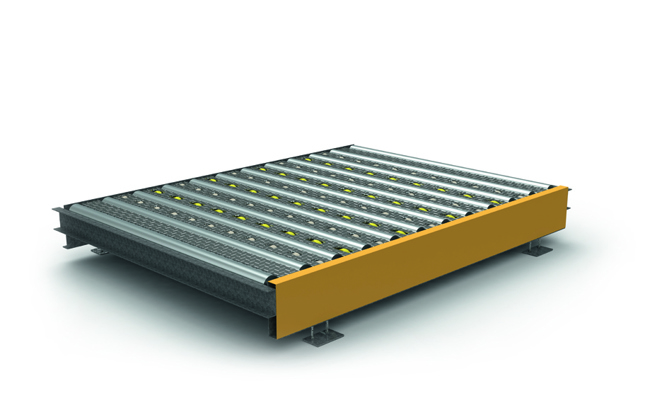

• Right Angle deck - 10ft
• Turn table with Motor powered roller deck or
Right angle deck - 10ft
Options: • Manual or powered pallet stops
• Weighing System

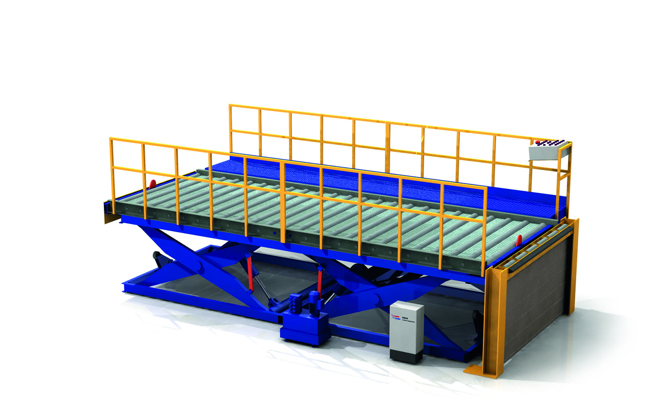

TRUCK DOCKS - Truck docks for loading and unloading ULD’s to and from trucks.
TRUCK DOCKS - Truck docks for loading and unloading ULD’s to and from trucks.

Operatingheight: 508 - 1,608 mm
Available sizes: 10ft /15ft / 20ft NEP
Available decks: • Motor powered roller deck
• Roller deck
• Ball deck
• Castor deck
• Drive-over deck
Options: • Operator platform
• Heavy duty rising roller barrier
• Side shift
• Weighing system
• Winch
• Container rotation section

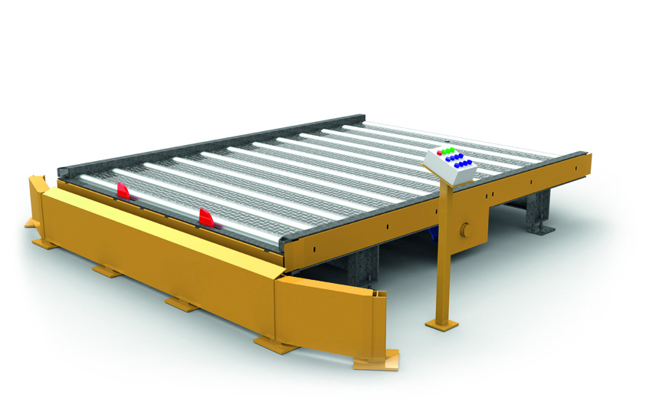

DOLLY DOCKS - Dolly docks for loading and unloading ULD’s to and from dollies.
DOLLY DOCKS - Dolly docks for loading and unloading ULD’s to and from dollies.

Operating height: 508 mm
Available sizes: 10ft / 15ft / 20ft NEP / 10ft WEP
Available decks: • Motor powered roller deck
• Roller deck
• Ball deck
• Castor deck
Options: • Scissor lift
• Heavy duty protection barrier
• Side shift
• Weighing system

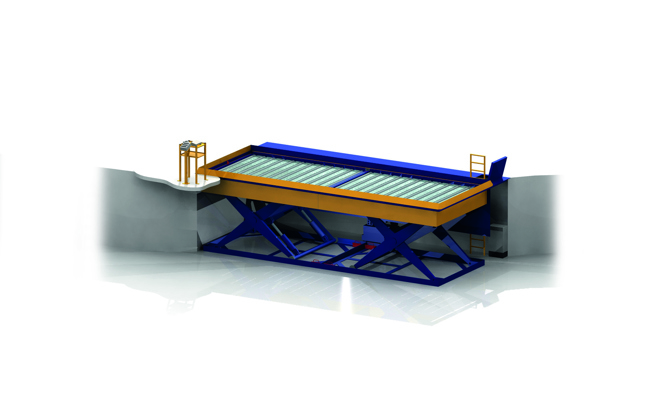

BUILD-UP BREAK-DOWN WORK STATIONS BUBD Work stations for the build-up and break-down of ULD’s.
BUILD-UP BREAK-DOWN WORK STATIONS BUBD Work stations for the build-up and break-down of ULD’s.

Operating height: 508 mm above floor level
1,400 mm below floor level
Available sizes: 10ft / 15ft / 20ft / 2 x 10ft NEP / 10ft WEP
Available decks: • Motor powered roller deck
• Roller deck
• Ball deck
• Castor deck
• Flat steel deck
• Drive-over deck
Options: • Weighing system

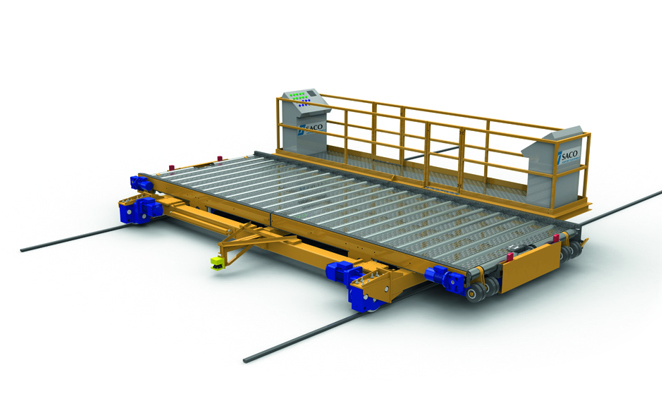

TRANSFER VEHICLES (TV) - Transfer Vehicles for automatically receiving, holding and transferring ULD’s in a single level storage deck system.
TRANSFER VEHICLES (TV) - Transfer Vehicles for automatically receiving, holding and transferring ULD’s in a single level storage deck system.

Operating height: 508 mm
Available sizes: 10ft / 15ft / 20ft / 10ft WEP
Options: • TVU; Transfer Vehicle prepared
to enable upgrading to a
2-level ETV
• Weighing system
• Automatic or semi-automatic operation

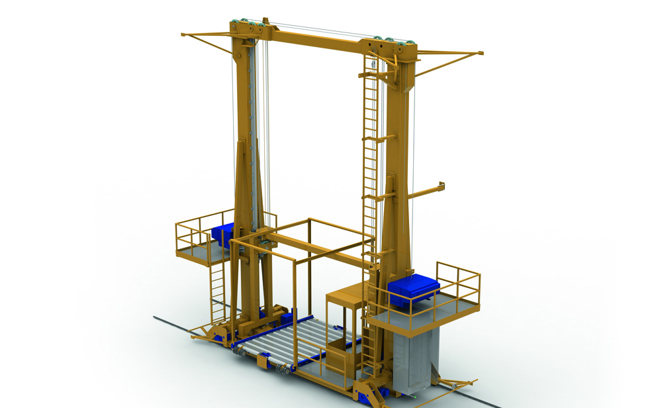

ELEVATING TRANSFER VEHICLES - Elevating Transfer Vehicles for auto receiving, holding, transferring ULD’s in a multi level storage deck system.
ELEVATING TRANSFER VEHICLES - Elevating Transfer Vehicles for auto receiving, holding, transferring ULD’s in a multi level storage deck system.

Typical operating 1st level 508 mm
Heights: 2nd level 4,008 mm
3rd level 7,508 mm
4th level 11,008 mm
Available sizes: 10ft / 15ft / 20ft / 10ft WEP
Options: • Weighing system
• Automatic or semi-automatic operation

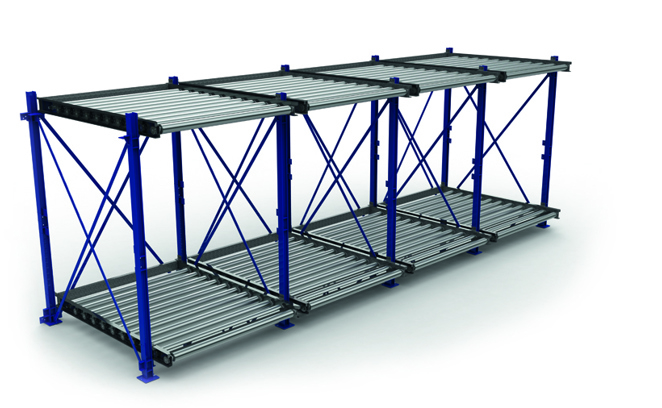

FRICTION POWERED ROLLER DECKS - Friction powered roller decks for storage of ULD’s are installed in single level or multi-level racking structures.
FRICTION POWERED ROLLER DECKS - Friction powered roller decks for storage of ULD’s are installed in single level or multi-level racking structures.

Operating height: 508 mm
Available sizes: • 10ft / 15ft / 20ft NEP / 10ft WEP
