The INDUCT module from Cellumation is a powerful solution designed to optimise sorter feeding with precise object alignment, orientation, and gapping. Built to automate the traditionally complex induction process, INDUCT ensures parcels are presented perfectly for downstream sorters, reducing jams and boosting throughput.

Equipped with advanced vision technology, INDUCT dynamically adjusts to product positions and speeds in real-time. It brings accuracy, speed, and reliability to one of the most critical stages of any sorting system, delivering unmatched efficiency in high-volume distribution environments.

As your trusted integration partner, Robson Handling Technology can integrate Cellumation solutions into an existing system or a completely new system.

INDUCT Benefits
Precision alignment and spacing

Ensures parcels enter the sorter in perfect orientation with consistent gaps for improved accuracy.

Dynamic object handling

Adjusts to changing parcel flows on the fly with real-time vision feedback.

High throughput induction

Handles up to 3,000 parcels per hour, maximising system capacity.

Compact design

Fits seamlessly into existing layouts without extensive modifications.

Smart control interface

Graphical user interface (GUI) and optional HMI for easy operation, monitoring, and adjustment.

Remote service ready

Remote support tools minimise downtime and keep systems running smoothly.

Technical Specifications
Technical Specifications

Category

Details

Software
Throughput Up to 3,000 parcels per hour
Control System EtherNet/IP, PROFINET, Digital I/O
Control Loop Closed loop with 3D vision
Objects
Object Size Min. L: 150mm, W: 150mm, H: 1mm
Object Weight Min. 100g
Hardware
Material Powder-coated steel
Camera 3D time-of-flight
Base Dimensions 1100mm x 860mm



Technical Specifications
Technical Specifications

Category

Details

Electrics
Operating Voltage 380–400 VAC, 50–60 Hz
IP Rating IP54
Environment
Noise Level < 70 dB(A)
Operating Temp 5°C to 35°C
Relative Humidity 5%–90% (non-condensing)
Certification CE certified



Intelligent feeding for maximum efficiency
Intelligent feeding for maximum efficiency

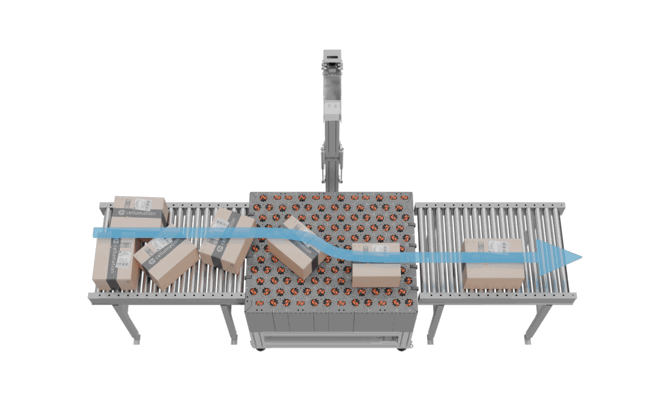

With closed-loop 3D vision control, INDUCT maintains consistent spacing between parcels, automatically compensating for variations in size, shape, and arrival timing. Combined with a graphical user interface and optional HMI display, operators gain intuitive control and monitoring over the induction process, ensuring minimal downtime and smoother system performance.

Robson Handling Technology integrates INDUCT modules to futureproof your induction lines, enhance sorter performance, and maximise productivity across your entire intralogistics operation.

Watch INDUCT in action

See how INDUCT streamlines induction in this video.

Learn more on Cellumation’s website.
