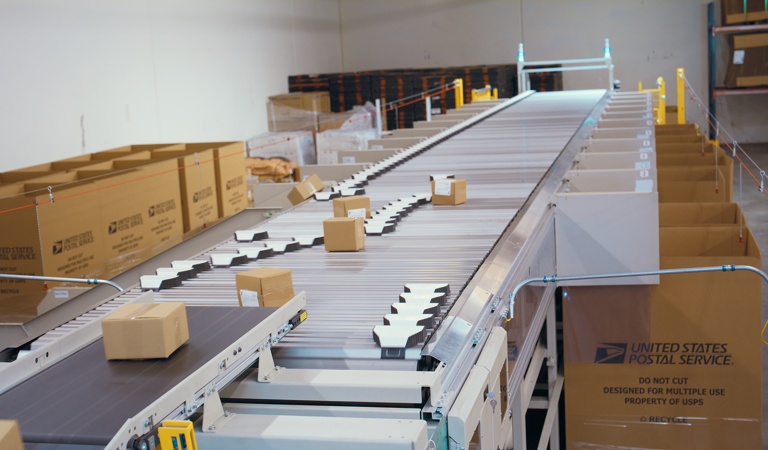

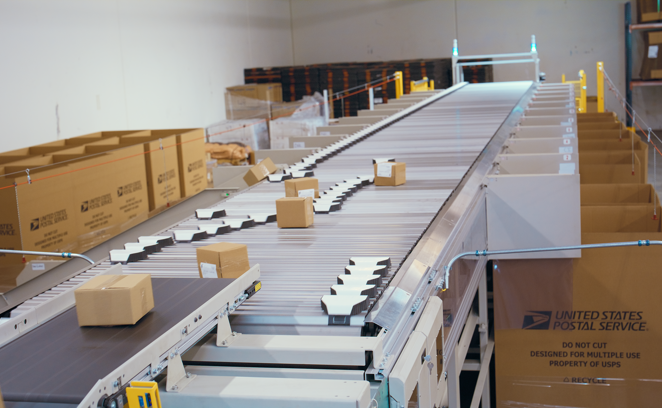

The NPI Xstream - Compact - High Density Single Lane Sliding Shoe Sorter is an innovative system is designed to provide companies with a fast and efficient way to sort various types of parcels, flats, boxes, and irregularly shaped items.

With a throughput of up to 10,000 parcels per hour, the Xstream can quickly process large volumes of packages, saving your company valuable time and resources.

Equipped with a multi-sided omni-directional barcode reader, the Xstream can accurately scan and read multiple types of barcodes, ensuring that each package is sorted to its correct destination. This versatile system can handle a wide variety of product sizes, shapes, and weights, making it an ideal solution for companies that need to sort a diverse range of packages.

NPI Xstream Compact - Features & Benefits
Throughput of up to 10,000 parcels per hour
Designed to sort difficult to automate packages

Such as poly bags, as well as flats, padded bags, and boxes

Flexible dimensioning, weighing, and scanning (DWS) functionality

To meet the needs of any application

Accurate sorting of parcels into different bin destinations

Such as sacks, or carts, depending on configuration requirements

Sensors for bin full, bin present, and divert confirmation
High throughput processing using shoes and slats

Optimised for consistent anti-jam sorting

Modular design to fit facilities with limited space
Standardised and secure API

For interface with customer's sort control system

Versatile and user-friendly web-based operating and diagnostic software
Impact-resistant fiber-reinforced nylon endcaps
Optional in-line labeling available
Seamless integration
Seamless integration

The Xstream is designed to work seamlessly with existing conveyor systems, allowing for easy integration into your company's workflow.

The system is also equipped with user-friendly web-based software, which provides you with real-time package data and a secure API for transmission of this data.

This allows you to easily monitor and manage your package sorting operations, giving you greater control and visibility over your supply chain.

Accurate & Efficient
Accurate & Efficient

The Xstream utilises a gap-based singulation method, which minimises jams and ensures that each package is sorted accurately and efficiently.

With its compact design and scalable capabilities, the Xstream is an excellent choice for companies that need a fast, reliable, and versatile package sorting solution.

Physical Mail Characteristics
Physical Mail Characteristics
LENGTH Min 4” (101mm)/Max 24” (610mm) Greater Capacity Optional
WIDTH Min 4” (101mm)/Max 20” (508mm) Greater Capacity Optional
HEIGHT Min 0.197” (5mm)/Max 18” (457mm) Greater Capacity Optional
WEIGHT Min 0.8 oz (23g)/ Max 60 lbs (27.2 kg)
Equipment
Equipment
Semi-Automated Bulk Singulator Optional dumper-hopper and patented singulation table

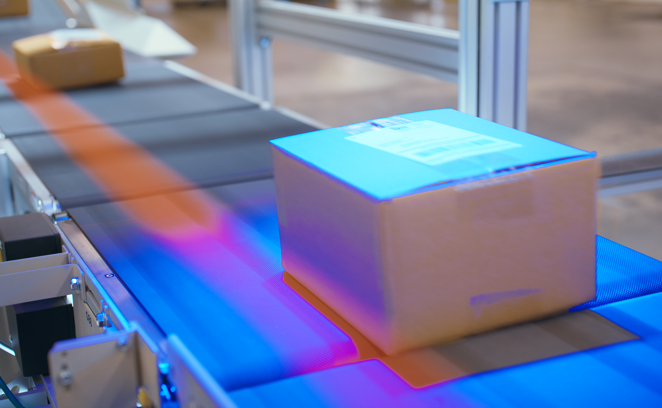

Dimension, Weigh, Scan

- 3D dimensioning with Certified Legal For Trade option available

- In-motion weighing with up to 2g accuracy. Certified Legal For Trade option available

- Configurable up to 6 sided BCR and OCR reading

Gapper Module Creates consistent gaps between poly bags, parcels, and boxes for accurate sortation
Max Sorting Rate Throughput dependent upon configuration - Up to 10,000 parcels per hour
Output Modules
Configurable to 22 inch, 33 inch, or 44 inch pitch which supports sorting into sacks, carts, or gaylords
Technical Specification
Technical Specification

Download our factsheet to read more about the technical specifications and benefits of using NPI Xstream Dual for your parcel sorting requirements.
