Looking for an accurate and cost-efficient way to sort difficult-to-automate parcels? Look no further than the NPI Xstream, the ultimate solution for sorting thousands of parcels per hour with ease.

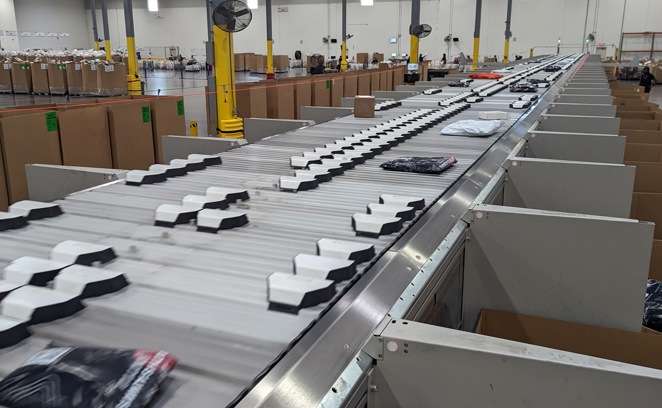

Using multiple cameras designed to scan barcodes from any position, the Xstream uses the information to direct parcels to the correct post code, making shipment a breeze. With optimised shoes and slats for consistent, anti-jam sorting, the Xstream boasts a high throughput, dropping parcels accurately into different bin destinations.

Each bin destination is equipped with a sensor that notifies you when a bin is full and ready to be swapped out. Plus, with a modular design, the Xstream is engineered to fit within facilities with limited space, even those with challenging footprints. Flexible design options are available to minimise your footprint, saving valuable floor space.

NPI Xstream Dual High Throughput - Features & Benefits
High throughput rates

Up to 24,000 parcels and flats per hour with our efficient sorter

Compact and scalable design

Ensures maximum productivity even in limited space

Handle both inbound and outbound package processing with ease
Omni-directional barcode reading capability

Easily read most 1D, 2D, and postal barcode types from multiple sides

Sort plastic, poly bags, boxes, flats

And most irregular pieces effortlessly with our versatile sorter

Handle a wide variety of product sizes, shapes, and weights to suit your needs
Sorter integrates smoothly with existing conveyor systems

For a seamless workflow

Choose from multiple product and output options

To customise the sorter to your specific requirements

Our web-based software is versatile and user-friendly

Making operation a breeze

Versatile & User Friendly
Versatile & User Friendly

With a versatile and user-friendly web-based software program that can be integrated with your system using a secure API to transmit package data, the Xstream makes sorting a breeze.

Best of all, it's proven to reduce labour costs dramatically, with many companies seeing a return on investment within months of installation.

Choose the NPI Xstream and see for yourself how it can benefit your parcel sorting requirements.

Physical Mail Characteristics
Physical Mail Characteristics
LENGTH Min 4” (101mm)/Max 24” (610mm) Greater Capacity Optional
WIDTH Min 4” (101mm)/Max 20” (508mm) Greater Capacity Optional
HEIGHT Min 0.197” (5mm)/Max 18” (457mm) Greater Capacity Optional
WEIGHT Min 0.8 oz (23g)/ Max 60 lbs (27.2 kg)
Equipment
Equipment
Semi-Automated Bulk Singulator Optional dumper-hopper and patented singulation table
Dimension, Weigh, Scan

- 3D dimensioning with Certified Legal For Trade option available

- In-motion weighing with up to 2g accuracy. Certified Legal For Trade option available

- Configurable up to 6 sided BCR and OCR reading

Gapper Module Creates consistent gaps between poly bags, parcels, and boxes for accurate sortation
Max Sorting Rate Throughput dependent upon configuration - Up to 24,000 parcels per hour
Output Modules
Configurable to 22 inch, 33 inch, or 44 inch pitch which supports sorting into sacks, carts, or gaylords
Technical Specification
Technical Specification

Download our factsheet to read more about the technical specifications and benefits of using NPI Xstream Dual for your parcel sorting requirements.

Read more
