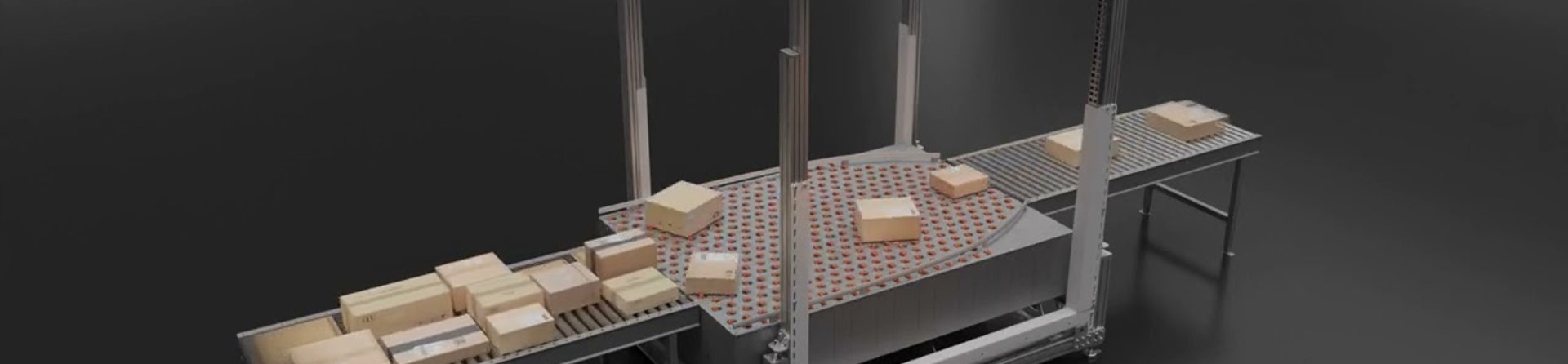

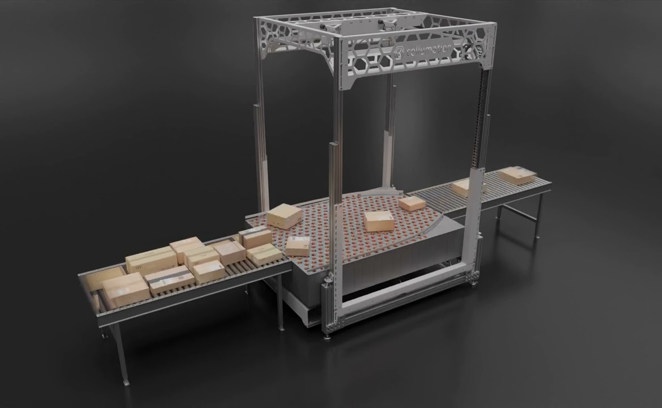

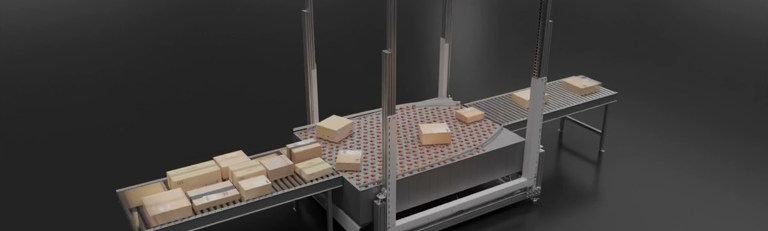

The SINGULATE module from Cellumation is an advanced solution for transforming bulk flows of flat, solid objects into a single, ordered stream at exceptional speeds. Designed for demanding logistics and parcel environments, SINGULATE uses precise alignment, orientation, and gapping to create a continuous, uniform feed that optimises downstream processes such as scanning, sorting, or packing.

SINGULATE automates what would otherwise require extensive manual labour or multiple devices, dramatically improving throughput and consistency in high-volume intralogistics operations.

As your trusted integration partner, Robson Handling Technology can integrate Cellumation solutions into an existing system or a completely new system.

SINGULATE Benefits

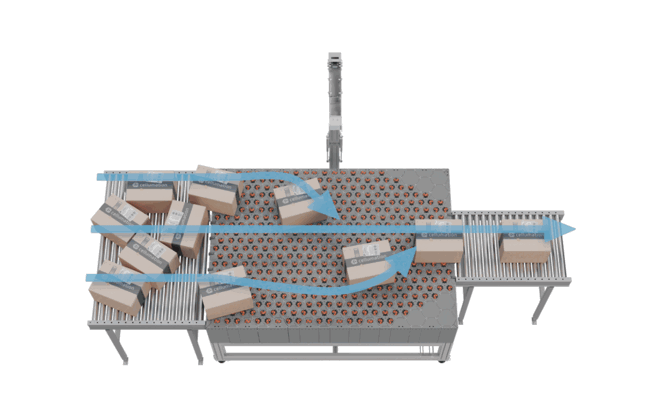

2D-bulk singulation

Transforms disorganised flows of items into a single, evenly spaced line, improving automation efficiency.

Vision-guided precision

3D time-of-flight cameras detect and control object position, orientation, and spacing dynamically.

Vision-guided precision

3D time-of-flight cameras detect and control object position, orientation, and spacing dynamically.

Unmatched throughput

Handles up to 10,000 parcels per hour for maximum system performance.

Versatile object handling

Adapts to various sizes and shapes without requiring changeovers.

Compact footprint

Space-saving design fits easily into new or existing conveyor lines.

Remote service ready

Integrated tools enable fast, efficient maintenance and remote support.

Technical Specifications
Technical Specifications

Category

Details
Software
Throughput Up to 10,000 parcels per hour
Control System EtherNet/IP, PROFINET, Digital I/O
Control Loop Closed loop with 3D vision
Objects
Object Size Min. L: 150mm, W: 150mm, H: 1mm
Object Weight Min. 100g
Hardware
Material Powder-coated steel
Camera 3D time-of-flight
Base Dimensions 1100mm x 1540mm





Technical Specifications
Technical Specifications

Category

Details
Electrics
Operating Voltage 380–400 VAC, 50–60 Hz
IP Rating IP54
Environment
Noise Level < 70 dB(A)
Operating Temp 5°C to 35°C
Relative Humidity 5%–90% (non-condensing)
Certification CE certified





Order from chaos with dynamic control
Order from chaos with dynamic control

SINGULATE combines Cellumation’s closed-loop control system and 3D vision technology to handle mixed object sizes, aligning and spacing each item with precision in real time. Capable of processing up to 10,000 parcels per hour, it brings efficiency and order to even the busiest parcel handling environments.

As a Cellumation delivery partner, Robson Handling Technology integrates SINGULATE modules into intelligent intralogistics systems that streamline operations, reduce bottlenecks, and increase overall productivity.

Watch SINGULATE in action
Watch SINGULATE in action

See SINGULATE deliver precise singulation in this video.

Learn more on Cellumation’s website
