At Robson Handling Technology, our baggage cart conveyors allow for greater flexibility when it comes to automatically moving slugs of 25-30 carts within the airport, between airside and landside, or between floors from Departure to Arrivals and vice versa.

Our baggage cart conveyors use two types of conveying technologies:

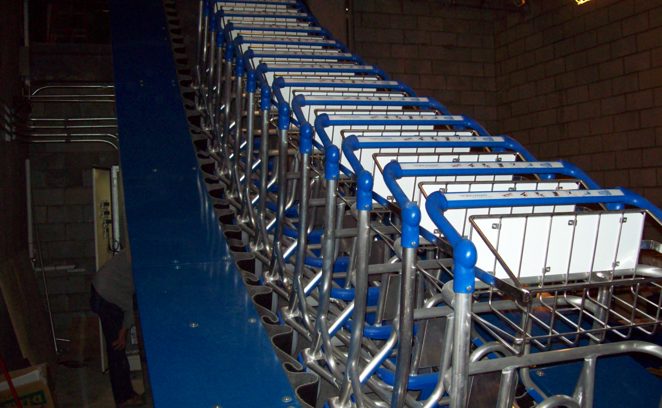

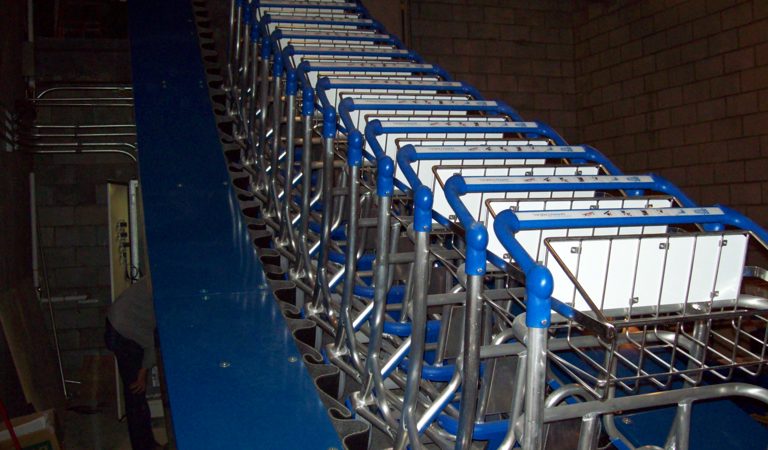

  • Flat conveyor
  • With a textured grip belt to transport carts

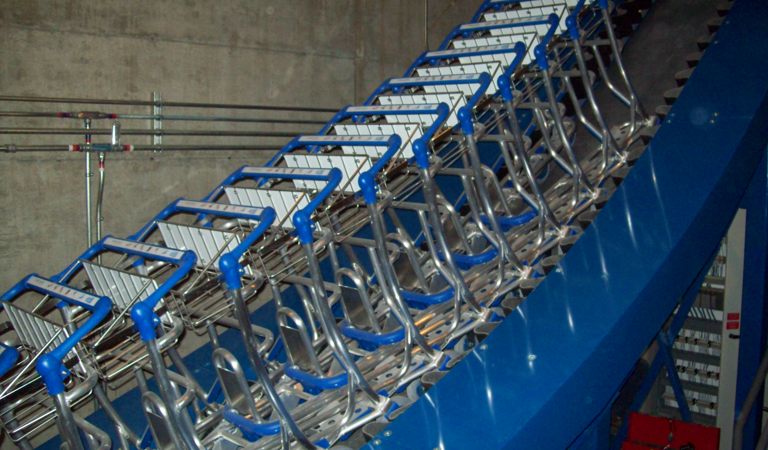

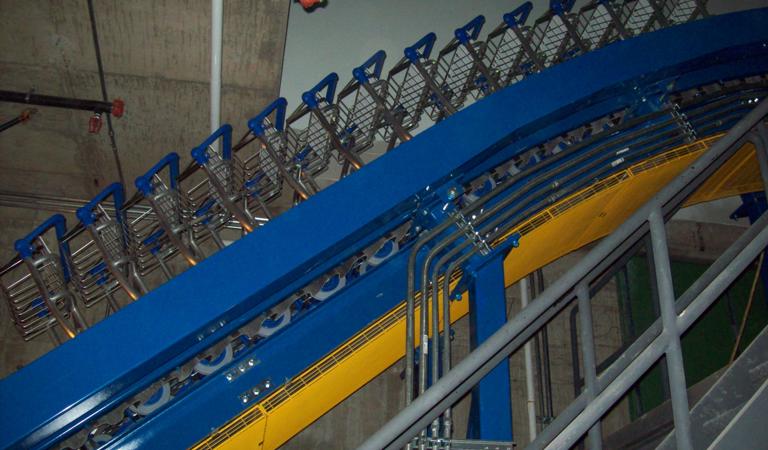

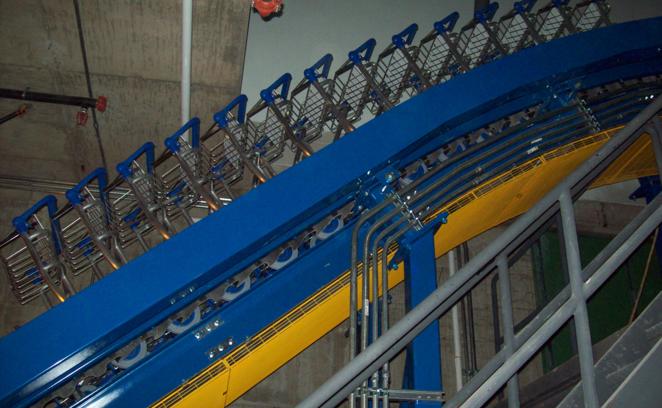

  • Dual chain conveyor
  • Mounted on opposite sides of the system to hold the carts in place
  • To prevent them from rolling away or separating whilst traveling on the 40º incline to reach upper or lower floors
Features and Benefits
Lower Maintenance Costs

A modular and durable design means sections can easily be maintained and replaced

Providing significant savings in relation to spare part inventory requirements and costly downtime

Increased Safety

An interlocking and fully enclosed sits within a weld mesh and mild steel frame to prevent access to moving parts

Increasing operator safety

Guaranteed Quality

Robson Handling Technology has decades of airport experience, with products manufactured by highly skilled engineers

Durable and long-life equipment, equates to lower maintenance costs

Innovatively Designed Layout Solutions

The small and lightweight design and structure allows for a reduced area footprint

Expertly designed for complex and compact spaces, to allow for greater throughput and efficiency

Reduced Lead-Time

Flexible and responsive to meet tight project deadlines

Providing minimum disruption to everyday airport operations

Aftermarket Support

Call out support, 24 hour help line, maintenance support, refurbishment service and spare part inventory

Increased product lifecycle and avoidance of costly downtime, equating to long-term cost savings

Maximum airport security
Maximum airport security

Used together with synchronized roller shutter doors, our baggage cart conveyors can span from the landside of the airport, which is the normal passenger terminal, across to baggage reclaim area.

Due to access to the aircraft, these areas require maximum airport security, meaning our synchronized roller shutter doors ensure no one can bypass stringent airport security checks.

Flexible design
Flexible design

The complex and flexible design of our baggage cart conveyors also caters for a change in the dimensions of the carts.

Special adjustable sliding supports are installed to enable the alteration of the width of the conveyor, which allows for flexible cart upgrades, as well as carts from different suppliers.

Technical Features
Technical Features

Dimensions: Unlimited
Widths: 550 to 650mm Standard (others opƟonal)
Incline / Decline: Up to 40º, horizontal secƟons also available
Material: Mild Steel or Stainless Steel
Finish: Galvanised or Powder Coated Mild Steel or x240 Grit Finish Stainless Steel
Speed: 0.5 metres per second (Inverter controlled)
Capacity: 25‐30 carts
